CH-XSBC Cantilever weight sensor

Product intro：Features: CH-XSBC cantilever weighing sensor made of high quality alloy steel, with high precision, high stability and other characteristics, easy to install, fast, suitable for mixing station, belt scale, batching scale and platform scale, etc.

TEL:156-2185-0939

Product intro

Product Name：CH-XSBC 悬臂梁式称重传感器

Product Features：CH-XSBC悬臂梁式称重传感器采用优质合金钢材质，具有高精度、高稳定性等特点，安装简便、快速，适用于搅拌站、皮带秤、配料秤和平台秤等。

Range：5kN（500kg）、10kN（1t）、20kN（2t）、30kN（3t）

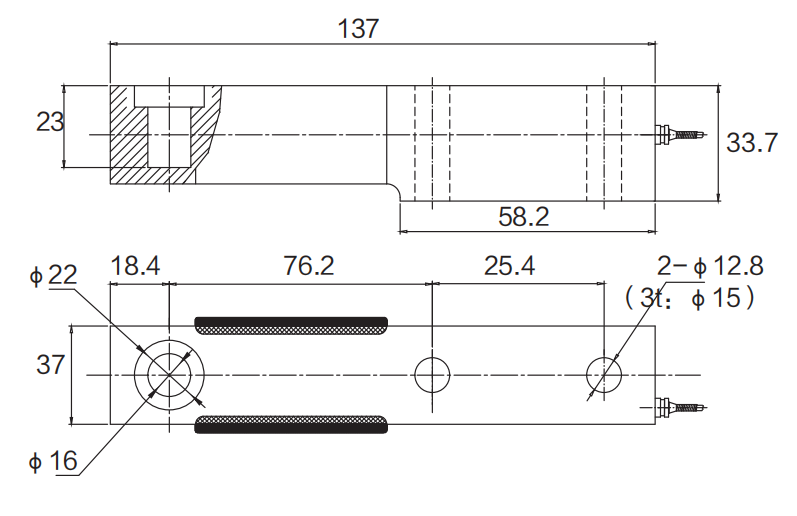

Dimensions：

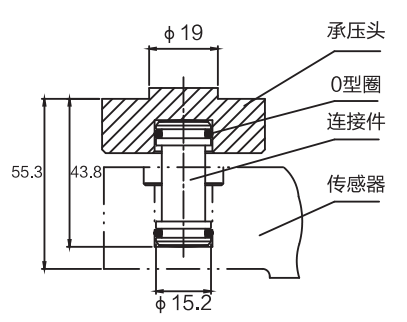

Attachment size：

Specifications：

Specifications
Rated Output	2.0mV/V±1%	Zero Balance	±1%F.S
Comprehensive Precision	0.03%F.S	Input Impedance	380±5Ω
Linearity/ Hysteresis	±0.03%F.S	Output Impedance	350±3Ω
Repeatability	±0.03%F.S	Insulation Impedance	≥5000MΩ
Creep	±0.03%F.S/30min	Recommended Excitation Voltage	5～15V/DC
Temp. Effect On Zero	±0.03%/10℃	Compensated temp. Range	-30℃～+70℃
Temp. Effect On Output	±0.03%/10℃	Safe Overload	150%F.S
Connection	Excitation：+ Red - Black Shield： Thick Yellow Signal： + Green - White
