Product Features：CH-SB Cantilever weight sensor
Product Features：CH-SB cantilever weighing sensor made of high quality alloy steel, with high precision, high stability and other characteristics, easy to install, fast, suitable for mixing station, belt scale, batching scale and platform scale, etc.
Range：3kN（300kg）、5kN（500kg）、10kN（1t）、20kN（2t）、30kN（3t）、50kN（5t）、80kN（8t）。

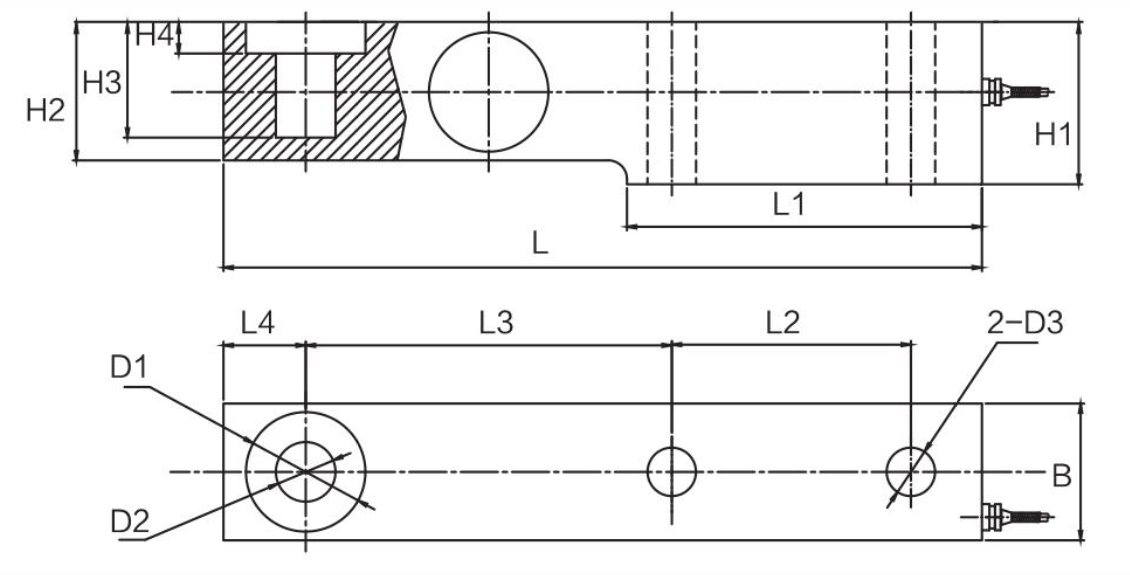

Dimensions：
|
Range（kN） |
Range（t） |
|
L |
L1 |
L2 |
L3 |
L4 |
H1 |
H2/B |
H3 |
H4 |
D1 |
D2 |
D3 |
|
3-30 |
0.3-3 |
mm |
203 |
95 |
64 |
98 |
22 |
43 |
36.6 |
30.5 |
8 |
Φ32 |
Φ16 |
Φ13 |
|
50-80 |
5-8 |
mm |
235 |
110 |
66 |
124 |
22 |
52 |
48 |
30 |
12 |
Φ38 |
Φ22 |
Φ21 |
Specifications：
|
Specifications |
|
|
|
|
Rated Output |
2.0mV/V±1% |
Zero Balance |
±1%F.S |
|
Comprehensive Precision |
0.03%F.S |
Input Impedance |
380±5Ω |
|
Linearity/ Hysteresis |
±0.03%F.S |
Output Impedance |
350±3Ω |
|
Repeatability |
±0.03%F.S |
Insulation Impedance |
≥5000MΩ |
|
Creep |
±0.03%F.S/30min |
Recommended Excitation Voltage |
5～15V/DC |
|
Temp. Effect On Zero |
±0.03%/10℃ |
Compensated temp. Range |
-30℃～+70℃ |
|
Temp. Effect On Output |
±0.03%/10℃ |
Safe Overload |
150%F.S |
|
Connection |
Excitation：+ Red - Black Shield： Thick Yellow Signal： + Green - White |
||
