CH-XSBC Cantilever weight sensor

Product intro：Product Features:Ch-xsbc is made of high quality alloy steel, featuring high precision and high stability, easy to install and fast, suitable for mixing station, belt scale, batching scale and platform scale, etc.

TEL:156-2185-0939

Product intro

Product Name：CH-XSBC Cantilever weight sensor

Product Features：Ch-xsbc is made of high quality alloy steel, featuring high precision and high stability, easy to install and fast, suitable for mixing station, belt scale, batching scale and platform scale, etc.

Range：5kN（500kg）、10kN（1t）、20kN（2t）、30kN（3t）

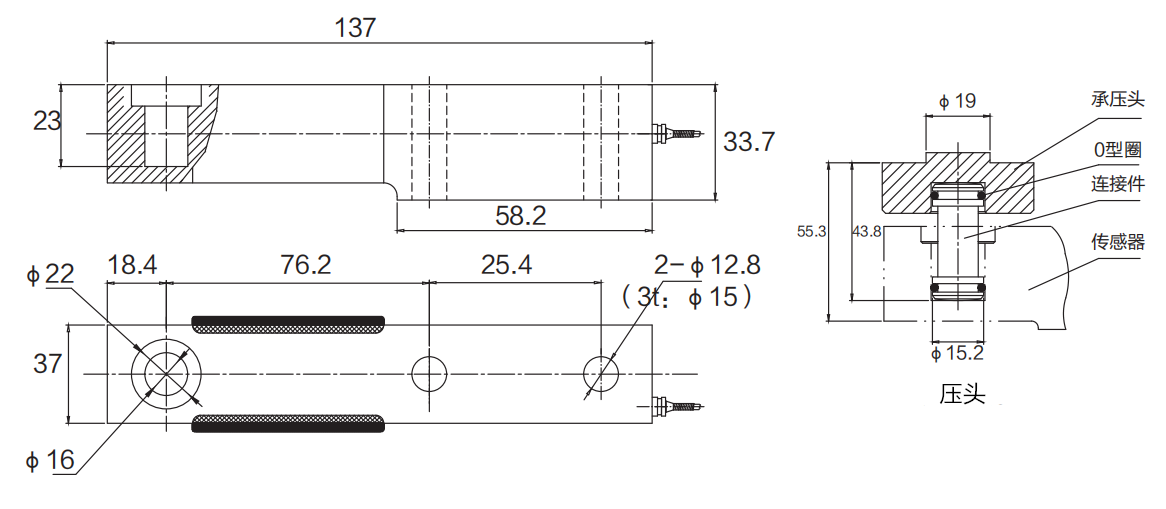

Dimensions：

Specifications：

Specifications
Rated Output	2.0mV/V±1%	Zero Balance	±1%F.S
Comprehensive Precision	0.03%F.S	Input Impedance	380±5Ω
Linearity/ Hysteresis	±0.03%F.S	Output Impedance	350±3Ω
Repeatability	±0.03%F.S	Insulation Impedance	≥5000MΩ
Creep	±0.03%F.S/30min	Recommended Excitation Voltage	5～15V/DC
Temp. Effect On Zero	±0.03%/10℃	Compensated temp. Range	-30℃～+70℃
Temp. Effect On Output	±0.03%/10℃	Safe Overload	150%F.S
Connection	Excitation：+ Red - Black Shield： Thick Yellow Signal： + Green - White
